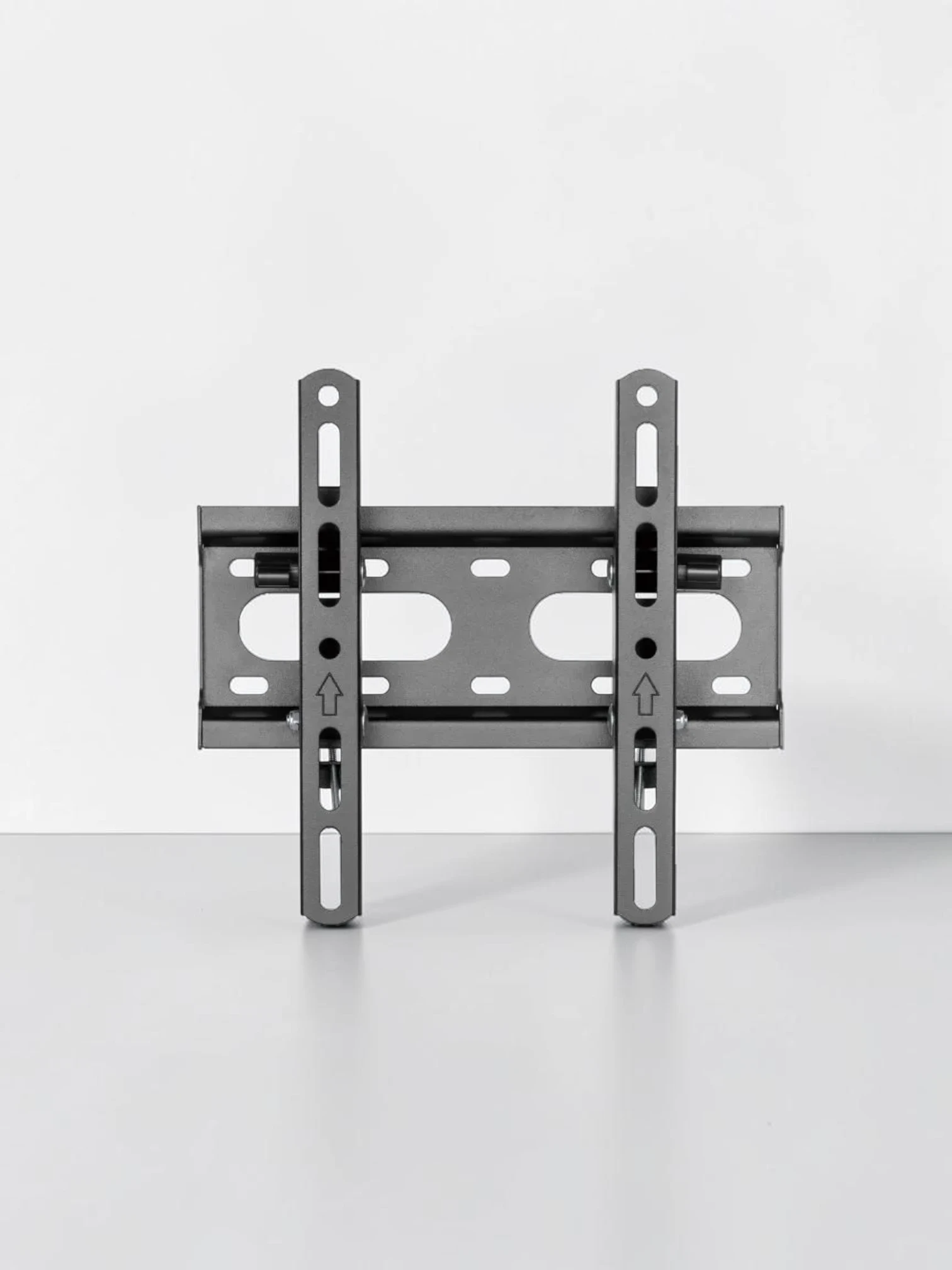

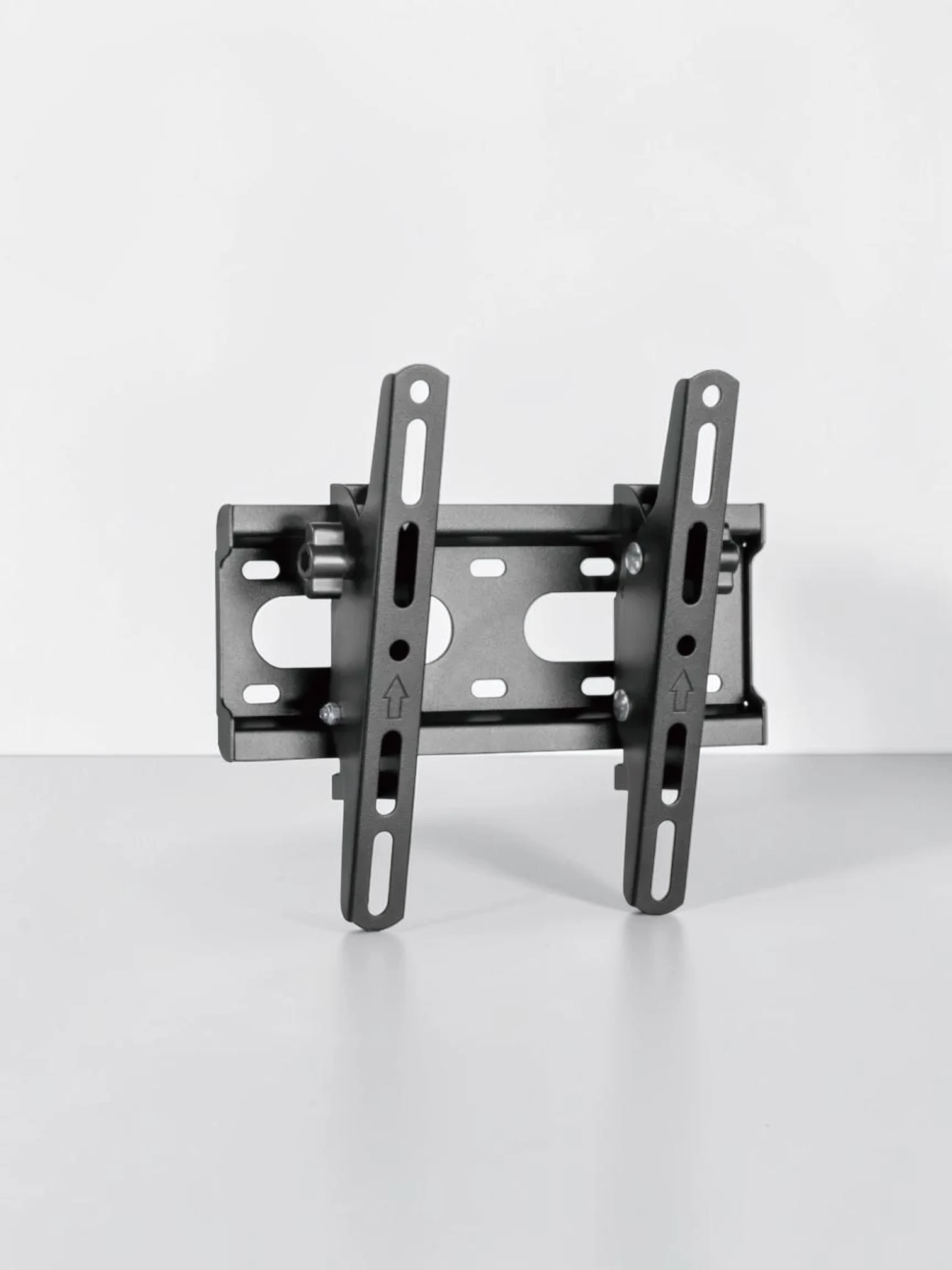

ergoscreenmount Tilting TV Wall Mount Bracket for 23-42 inch Flat and Curved Screens, Steel, VESA 200×200

This tilting TV wall mount is engineered for 23 to 42-inch flat and curved LCD/LED displays. Constructed from cold-rolled steel, the bracket arm and wall plate both feature a 1.4mm thickness to provide structural support for screens weighing up to 99 lbs (45kg).

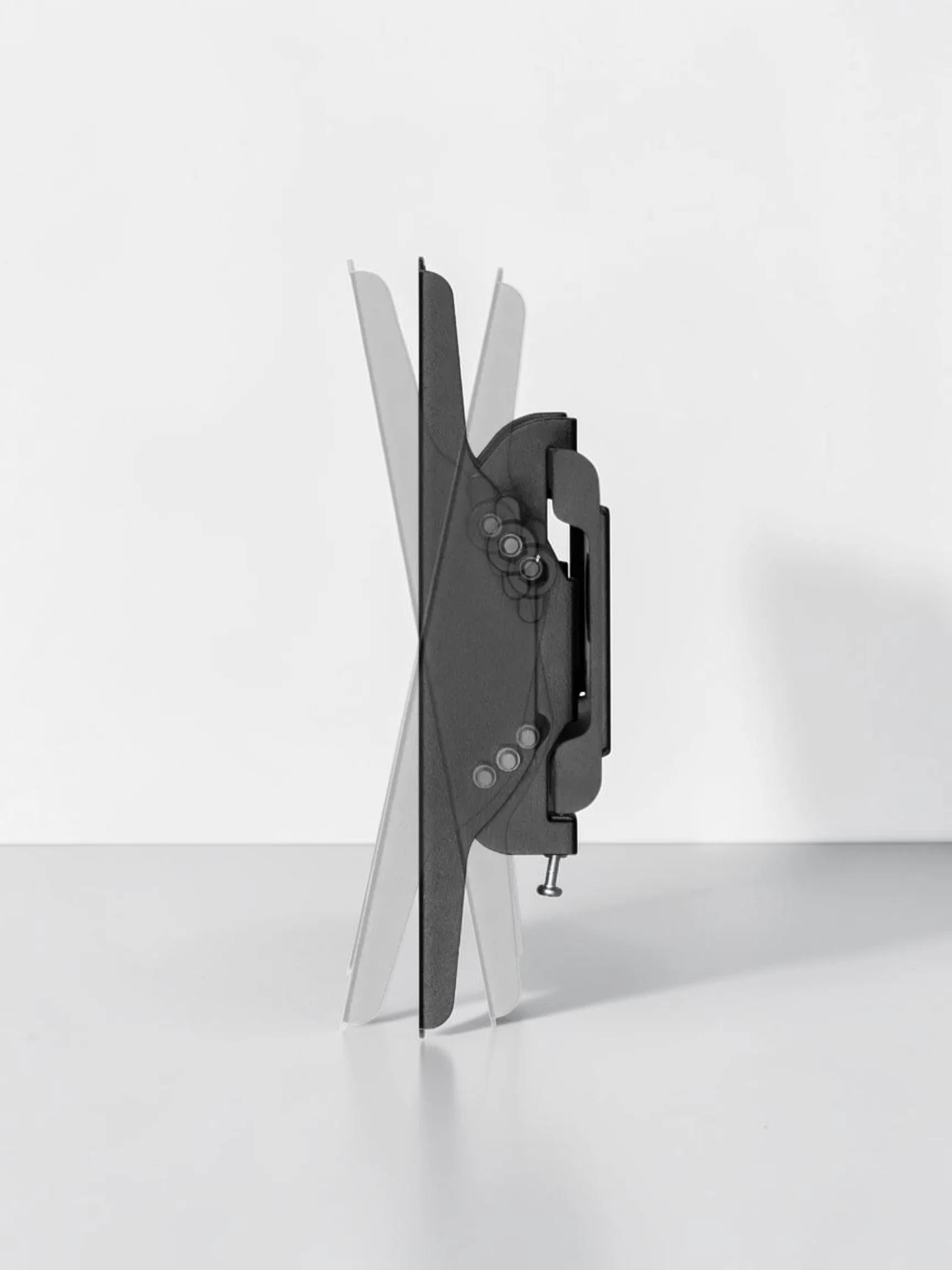

The mounting system offers a tilt range of +12° to -12°, allowing users to adjust the screen angle to reduce glare. The design incorporates easy-grip knobs for manual adjustment and locking, alongside security screws to maintain the position of the TV on the wall plate. The detachable panel design facilitates a structured installation process on solid wall surfaces.

Technical Specifications:

• Mounting Style: Fixed & Tilting TV Wall Mount
• Color: Powder Coated Black
• Material: Steel, Plastic
• Bracket Arm & Wall Plate Thickness: 1.4mm [0.055 inch]
• Dimensions: 263 x 223 x 53mm [10.4 x 8.8 x 2.1 inches]
• Supported VESA Patterns: 75×75, 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, 200×200
• Screen Size Compatibility: 23 – 42 inches [58 – 106cm]
• Weight Capacity: 99 lbs [45kg]
• Profile: 53 mm [2.1 inch]
• Installation Surface: Solid Wall
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• Includes: Hook-on Bubble Level
• Tilt Range: +12° to -12°
• RoHS and REACH Compliant
• Product Weight: 3 lbs [1.36kg]
